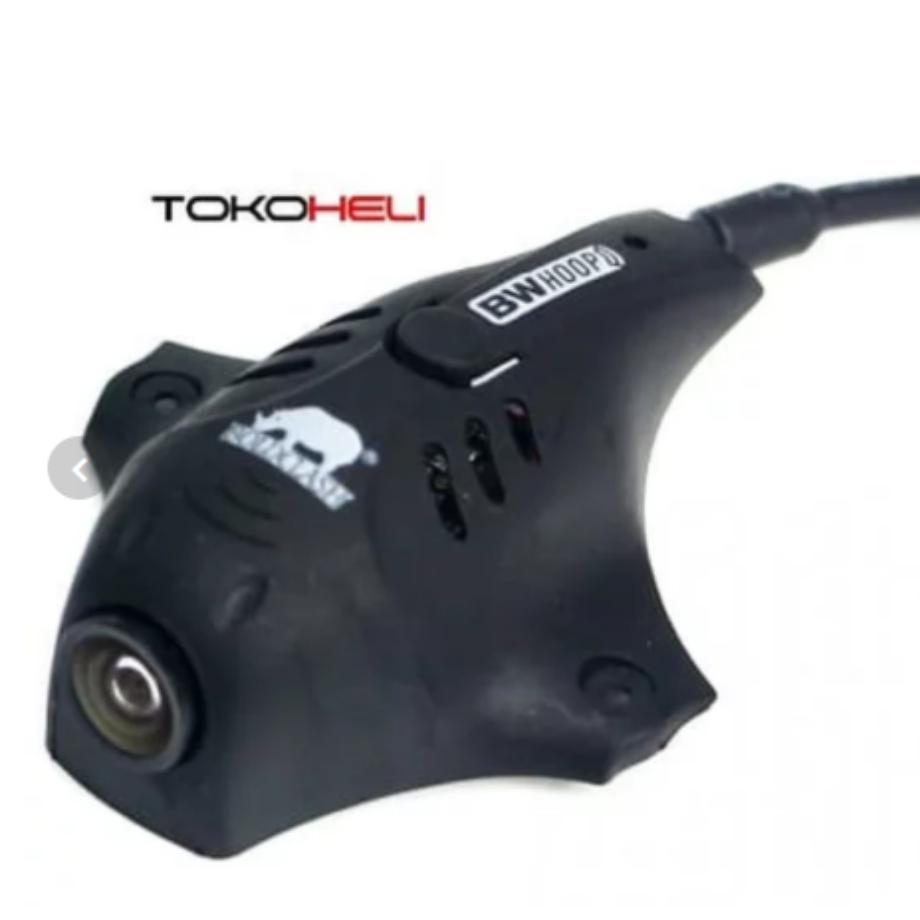

BoldClash F02H AIO Camera with Black Canopy

通常価格 4,290円

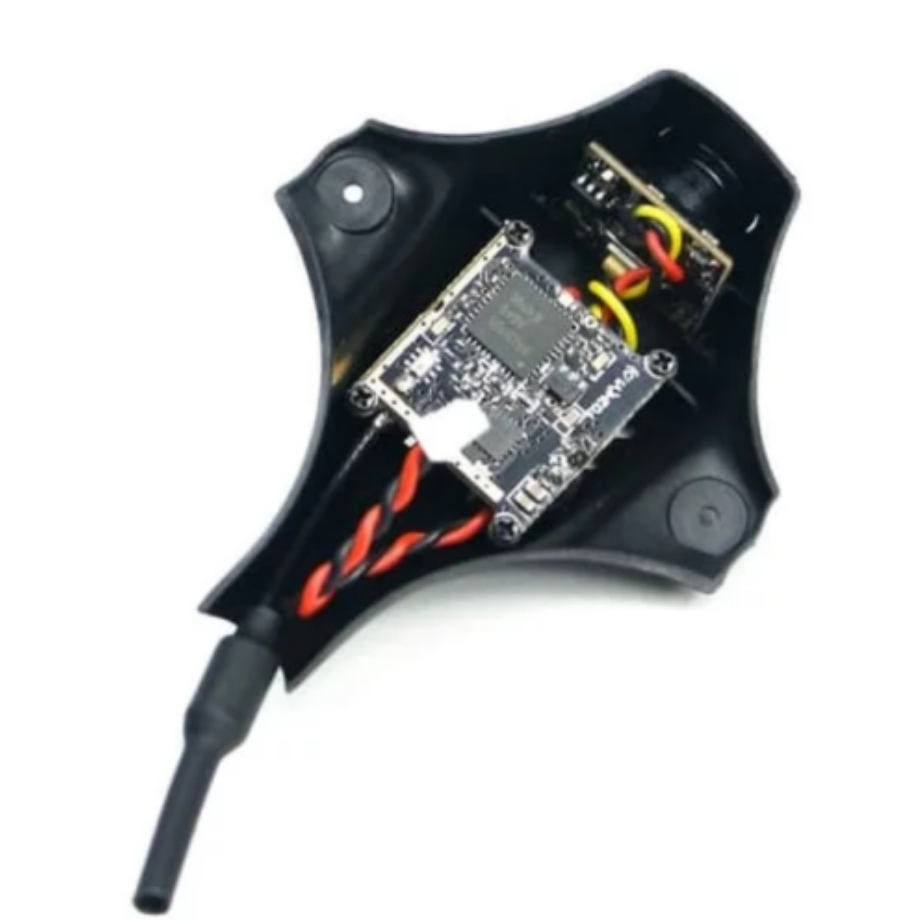

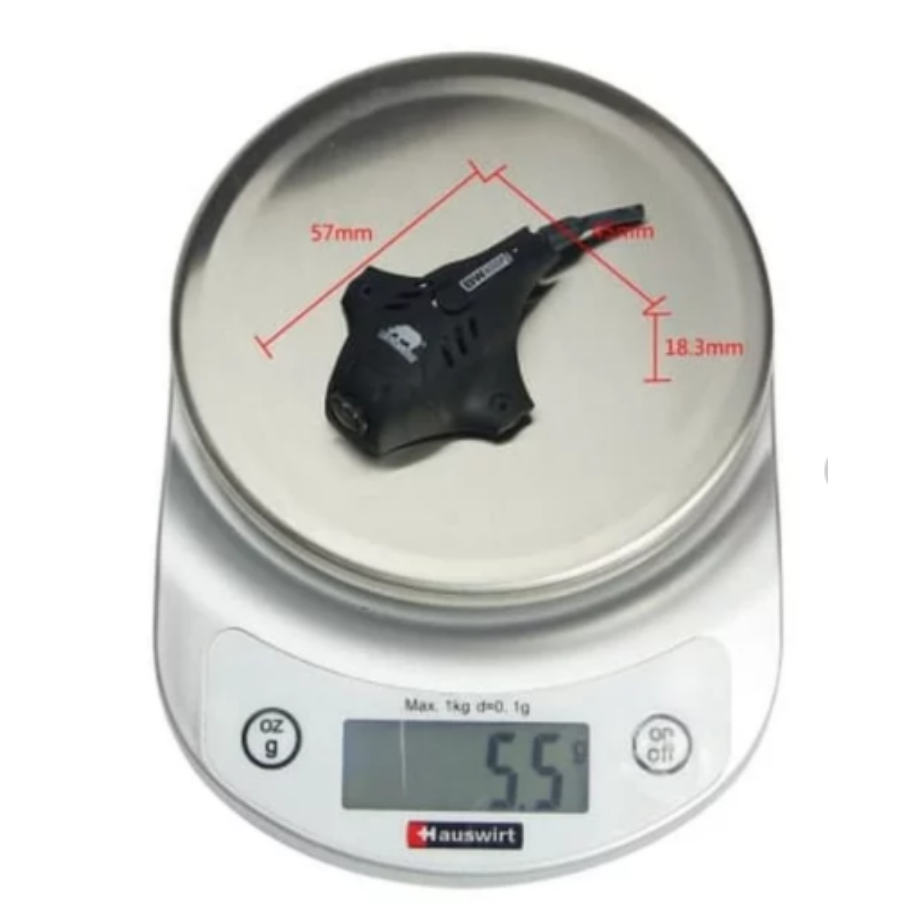

Features 48 Channels. NTSC Super Anti-shock. Wide lens angle(10° angle). Miniature and Light Weight Design. Suitable for most coreless motor FPV mini quadcopters multirotors. Support touchswitch select channel frequency group, TX Power 25mW/100mW/200mW/PIT Mode Support Switch. 8 LED display channel and 6 LED display frequency group information and 1 LED display PAL/NTSC and FLIP information. All in one VTX + Camera + Antenna. Compatible with osd Betaflight/Cleanflight Specifications Model: F02H Pro Temperature: -10℃ ~ +60 ℃ Ambient Temperature: 2 5℃ Frequency Band: 5362~5945MHz Channel: 48CH Modulation Type: FM Channel Sel: touch switch TX Power: PIT/25mW/100mW/200mW Transmit Power: 13+1dB m Frequency Control: PLL ALL harmonic: Max -50dBm Frequency Stability: 100KHz Frequency Precision: 200KHz Channel Carrier Error: ±1d B Antenna Port: 50 Ohms Lens Angel: H:120/V:10 0 Power Consumption: 250±20MA@5V DCI N Supply Voltage: 2.9V-5.5 V Weight: 3.57g(w/o hood);5.5(w/ hood) Suitalbe for:Bwhoop B03 pro,B03,B06,Inductrix,E011,TINY7 Camera angle:10° PACKAGE INCLUDED 1 x Canopy (Clear,with Camera and VTX) 1 x B06 Screws 1 x Inductrix Screws 1 x Antenna 1 x 4pin to 2pin Cable 1 x Manual 1 ×VTX系統図付
