iFlight SucceX-E Mini F7 2-6S Flight Controller

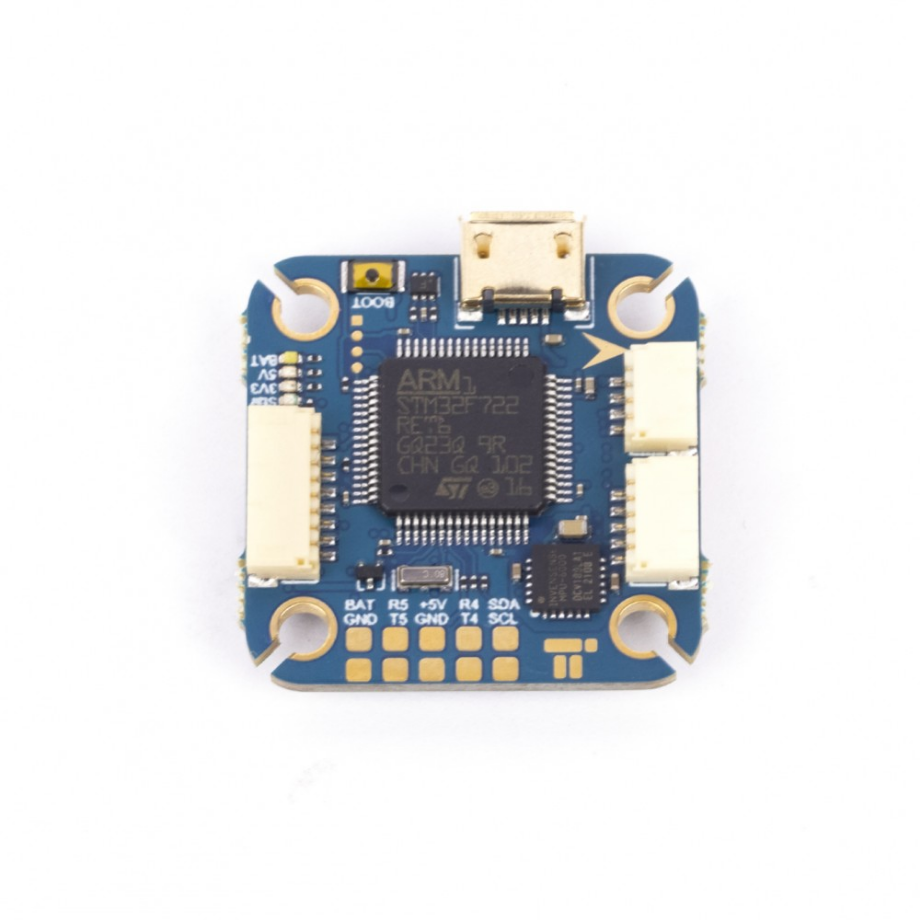

Top Features: - Gold-plated plug - BlackBox: 16MB - Vista HD Plug-and-Play. No need to solder tiny wires. - BAT, +5V, 3.3, Start indicator - Smartaudio & IRC Tramp VTX protocol supported Changelog: Due to some global supply issues, the Barometer and Flash component was updated as well as some circuit improvements implemented. Before BMP280 changed to DPS310 Before 8MB Flash changed to 16MB Flash August 2021: Barometer is not supported Specifications: - MCU: STM32F22RET6 216 MHz - Gyro: MPU6000 - Baro: NO - OSD: IFLIGHT OSD (AT7456E) - BEC: 5V 2.5A - BlackBox: 16MB - Uart:4*UART(UART1、UART2、UART4、UART5) - UART1 for VTX HD/Analog Telemetry - UART2 for Receiver - UART4 for GPS - UART4 for GPS or other sensors that require a serial port - UART5 for ESC Telemetry - 4×Dshot/PWM outputs - 1×12C - 1×SH1.0 8pin connector for ESC(GND/BAT/M1/M2/M3/M4/CUR/R5) - 1 x SH1.0 8pin connector for Any Receiver or VISTA(5V/T2/R2/GND/R1/T1/GND/BAT) - 1 x SH1.0 4pin connector for VTX(5V/VBAT/GND/VTX/T1) - 1 x SH1.0 4pin connector for Camera(5V/GND/CAM/CC) - 1 x SH1.0 4pin connector for LED&Buzzer(GND/BZ-/LED/5V) - 4×0201 LEDs for FC STATUS (Blue, Red,Orange ) and 3.3V indicator(Red) BAT/+5V/3.3V/start - WS2812 led Strip:Yes - Smartaudio & IRC Tramp VTX protocol supported - WS2812 led Strip: Yes - Bepper: Yes - Firmware: IFLIGHT_SUCCEX_E_F7 4.2.9 - Outer Size: 27*27mm / 20*20mm φ3 mounting - Weight: 6.0g Physical - Mounting hole: 20*20mm,φ3mm - Size: 27*27mm Package included: - 1pc x SucceX-E mini F7 Flight controller - 1set x wire harness
